Specifications

Specifications

HS-code	85472000
Material	Elastomer, Polyamide (PA)
Colour	Black
Height	8mm
Installation dimension	Ø 25.5 mm (M25)
IP Rating	IP54, IP55, IP64, IP65, IP66, IP67, IP68
Depth	14 mm
Clamping range	4x 3.2-5.2mm
Temperature	-40°C / +100°C
Diameter	Ø 39 mm
Net Weight (kg)	0.016

Details

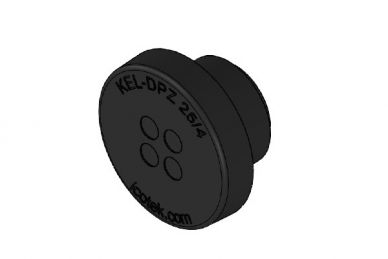

KEL-DPZ 25/4 round cable entry plate, screw nut, M25, black
