Documenten

ICOTEK datasheet KEL-DPZ M50-M63 (95.21 kB)

ICOTEK catalogus nr.37 (50.02 MB)

Specifications

Specifications

HS-code	85472000
Material	Elastomer, Polyamide (PA)
Colour	Grey
Height	8mm
Installation dimension	Ø 50.5 mm (M50)
IP Rating	IP54, IP55, IP64, IP65, IP66, IP67, IP68
Depth	14 mm
Clamping range	19× 3.2-6.5mm
Temperature	-40°C / +100°C
Diameter	Ø 62 mm
Net Weight (kg)	0.038

Details

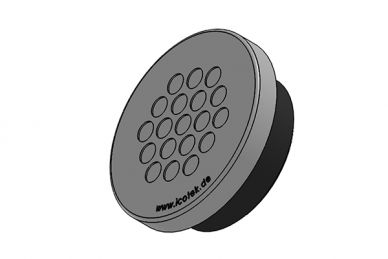

KEL-DPZ 50/19 cable entry plate M50, screw nut, gray
